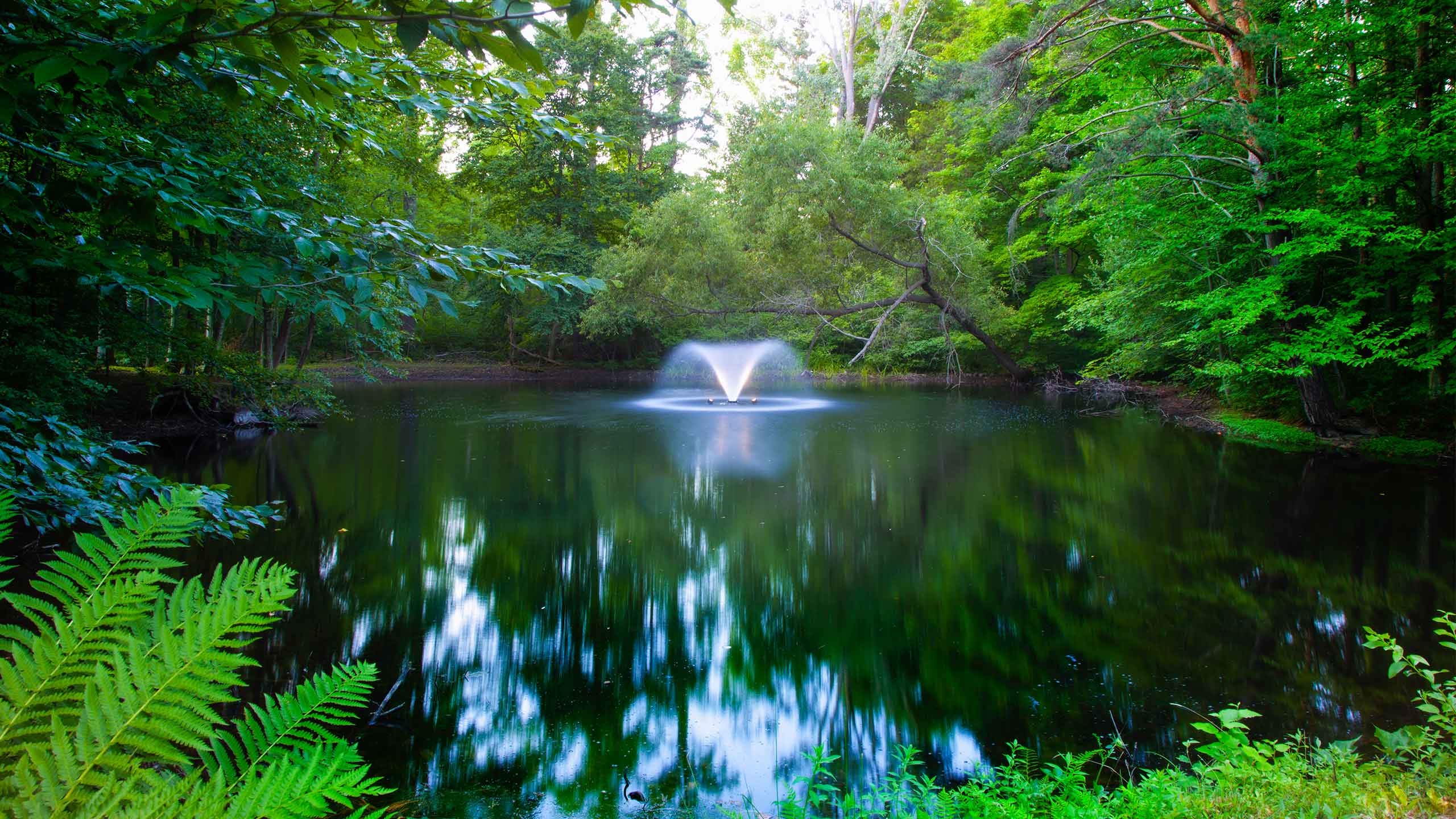

Comprehensive Aeration Kit

DA-20 ½ hp

• ½-hp, 115-volt or 230-volt, oil-free motor
• 400 gallons-per-minute flow rate
• Default spray pattern measures 6 feet high, 22 feet wide.
• Spray pattern adjusts in width, can be as narrow as 9 feet.
• Electric power cord provided is 70 feet long, 12-gauge submersible, with plug.
• Electric power cord can be ordered in greater lengths, up to 150 feet.
• Light kits can be added at purchase or later.
• Approved for use in salt water.
• Two 30-pound weights or concrete blocks required for anchoring (not included).
• Two nylon ropes required for anchoring (not included).
• Designed for 24-hour-per-day operation.
• No maintenance required.
• 32-inch minimum pond depth required.
• Pond size should be 1/8 acre or larger.
• Motor specs: 60 Hz, single-phase, 10 amps, 680 watts.
• 230-volt motor available.
• 5-year motor warranty.
• Available in 3-phase version.
• Available in 50 Hz.
• ARL tested and approved to be in compliance with the applicable requirements of UL and the National Electric Code as complete packages.

Color-Changing LED Two-Light Set

• Remote control
• Two stainless steel lights and mounting brackets
• Power cables
• Programmable timer
• Durable exterior grade power supply
• 110 volts
• 15 watts per fixture
• 1230 lumens
• Two year warranty on the fixtures and brackets, one year warranty on transformer and power cord

Color-Changing LED Four-Light Set

• Remote control
• Four stainless steel lights and mounting brackets
• Power cables
• Programmable timer
• Durable exterior grade power supply
• 110 volts
• 15 watts per fixture
• 1230 lumens
• Two year warranty on the fixtures and brackets, one year warranty on transformer and power cord

Night Glo Two-Light Set

• Two stainless steel lights and arm brackets
• 100 feet of submersible power cord, greater lengths available
• All-weather transformer with fully programmable digital timer
• Durable exterior grade power supply
• 12 volts
• 9 watts per fixture
• 1230 lumens
• 2800K warm white
• Two-year warranty on fixtures and brackets, one-year warranty on transformer and power cord

Night Glo Four-Light Set

• Four stainless steel lights and arm brackets
• 100 feet of submersible power cord, greater lengths available
• All-weather transformer with fully programmable digital timer
• Durable exterior grade power supply
• 12 volts
• 9 watts per fixture
• 1230 lumens
• 2800K warm white
• Two-year warranty on fixtures and brackets, one-year warranty on transformer and power cord

½ hp, 115 volts

UPC# 810094920937

MPN# 13528

½ hp, 230 volts

UPC# 810094920708

MPN# 13528.1

1 hp, 230 volts

UPC# 810094920715

MPN# 13528.2

1½ hp, 230 volts

UPC# 810094920722

MPN# 13528.3
