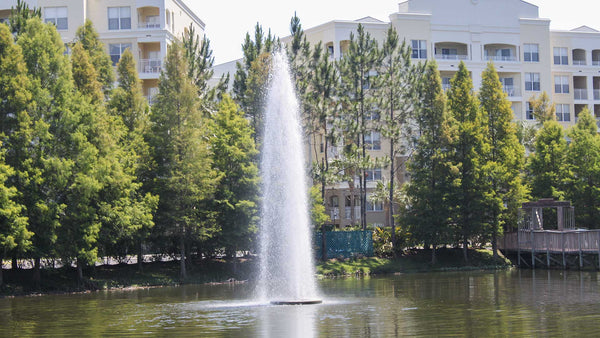

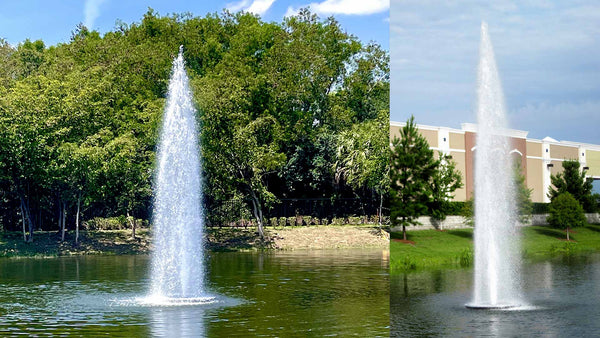

Two images of a fountain in a park with trees and buildings in the background.
Description Specs Features & Assembly

Introducing the GeyserJet Commercial Fountain from Vertex!

Scott Aerator is excited to partner with Vertex Aquatic Solutions to offer large, commercial grade fountains for your large ponds and water features! Ranging from 5–20 hp, the GeyserJet Fountain will elevate any waterscape with the striking, white turbulence of an 18–30 foot high center column. Its robust, wind-tolerant display stands out beautifully by day and becomes a captivating focal point at night, glowing through its richly aerated column.

Each GeyserJet fountain is engineered with a heavy-duty submersible turbine pump and a UL-listed control panel. Crafted from waterproof, corrosion-resistant materials, these components ensure enduring quality and exceptional performance.

Warranty: All Vertex fountains feature a 4-year warranty on pumps/motors, flotation components, and cables along with a 2-year warranty on submersible light fixtures (excluding bulbs), and a 1-year warranty on controls.

Returns: Unused fountains are eligible for returns within 30 days, minus a 25% restocking fee. Please contact us for details.

GeyserJet Fountain 5 hp

  • 5 hp, 230, 200, or 460 V, water-cooled and lubricated motor
  • 60 Hz, single phase or three phase
  • Current draw: 1.1 amps
  • Spray pattern measures 18 feet high, 5 feet wide
  • Electric power cord provided:
    • Single phase, 230 V: 100 feet in length, 10 gauge
    • Three phase, 230 V: 100 feet in length, 12 gauge
    • Three phase, 208 V: 100 feet in length, 12 gauge
    • Three phase, 460 V: 100 feet in length, 12 gauge
    Electric power cord can be ordered in greater lengths
  • Ideal for ponds over 2 acres
  • 4-foot minimum pond depth required

GeyserJet Fountain 7.5 hp

  • 7.5 hp, 230 V, water-cooled and lubricated motor
  • 60 Hz, single phase
  • Current draw: 1.5 amps
  • Spray pattern measures 22 feet high, 6 feet wide
  • Electric power cord provided: 100 feet in length, 8 gauge
    Electric power cord can be ordered in greater lengths
  • Ideal for ponds over 2 acres
  • 5-foot minimum pond depth required

GeyserJet Fountain 10 hp

  • 10 hp, 230, 200, or 460 V, water-cooled and lubricated motor
  • 60 Hz, single phase or three phase
  • Current draw: 1.5 amps
  • Spray pattern measures 25 feet high, 6 feet wide
  • Electric power cord provided:
    • Single phase, 230 V: 100 feet in length, 8 gauge
    • Three phase, 230 V: 100 feet in length, 8 gauge
    • Three phase, 208 V: 100 feet in length, 8 gauge
    • Three phase, 460 V: 100 feet in length, 12 gauge
    Electric power cord can be ordered in greater lengths
  • Ideal for ponds over 2 acres
  • 6-foot minimum pond depth required

GeyserJet Fountain 15 hp

  • 15 hp, 230 V, water-cooled and lubricated motor
  • 60 Hz, single phase
  • Current draw: 1.8 amps
  • Spray pattern measures 28 feet high, 8 feet wide
  • Electric power cord provided: 100 feet in length, 6 gauge Electric power cord can be ordered in greater lengths
  • Ideal for ponds over 2 acres
  • 7-foot minimum pond depth required

GeyserJet Fountain 20 hp

  • 20 hp, 230, 200, or 460 V, water-cooled and lubricated motor
  • 60 Hz, three phase
  • Current draw: 2.2 amps
  • Spray pattern measures 30 feet high, 8 feet wide
  • Electric power cord provided:
    • Three phase, 230 V: 100 feet in length, 6 gauge
    • Three phase, 460 V: 100 feet in length, 10 gauge
    Electric power cord can be ordered in greater lengths
  • Ideal for ponds over 2 acres
  • 7-foot minimum pond depth required


Safety & Compliance: Vertex fountains must be removed from water prior to freezing conditions. Please see owner’s manual for complete installation instructions, warranty details, and maintenance guidelines.
