Vertex AerationJet Fountain

Vertex AerationJet Fountain

SKU: 70024.100

$44,509.00

Fountain in a pond with trees and clear sky in the background
Fountain in a pond with trees and clear sky in the background

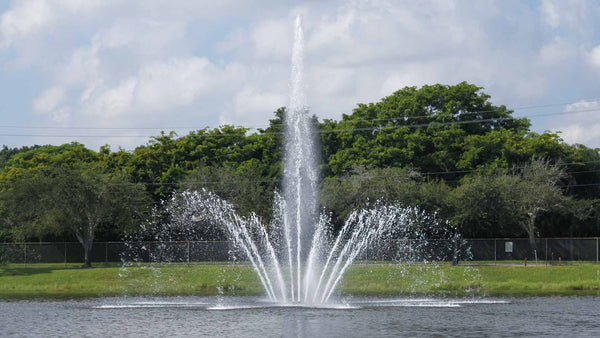

Fountain in a park with trees and blue sky in the background
Description Specs Features & Assembly

Introducing the AerationJet Commercial Fountain from Vertex!

Scott Aerator is proud to partner with Vertex Aquatic Solutions to provide large, commercial-grade fountains designed for expansive ponds and water features. The AerationJet is an excellent example of Vertex’s impressive and elegant fountains!

Combining impressive height, elegant arching streams, and exceptional wind resistance, the AerationJet floating fountain is a standout water feature for any lake or pond. Its heavily aerated jets create a striking display, reaching heights of up to 50 feet and spanning an impressive 60-foot diameter. Each fountain is powered by a UL-listed control panel and a heavy-duty submersible turbine pump. Built with fully waterproof components and premium corrosion-resistant materials, the AerationJet delivers long-lasting reliability and high-performance operation year after year.

Warranty: All Vertex fountains feature a 4-year warranty on pumps/motors, flotation components, and cables along with a 2-year warranty on submersible light fixtures (excluding bulbs), and a 1-year warranty on controls.

Returns: Unused Vertex fountains are eligible for returns within 30 days, minus a 25% restocking fee. Please contact us for details.

AerationJet Fountain 10 hp

  • 10 hp, 230 or 460 V, water-cooled and lubricated motor
  • 60 Hz, single phase or three phase
  • Amps:
    • Single phase, 230 V: 51
    • Three phase, 460 V: 15.8
  • Spray pattern measures:
    • Center jet: 30 feet high
    • Spray pattern: 15 feet high, 30 feet wide
  • Electric power cord provided:
    • Single phase, 230 V: 100 feet in length, 8-gauge
    • Three phase, 460 V: 200 feet in length, 12-gauge
    Electric power cord can be ordered in greater lengths
  • Ideal for ponds over 2 acres
  • 6-foot minimum pond depth required

AerationJet Fountain 15 hp

  • 15 hp, 230 or 460 V, 60 Hz, single phase or three phase, water-cooled and lubricated motor
  • Amps:
    • Single phase, 230 V: 47
    • Three phase, 460 V: 23.7
  • Spray pattern measures:
    • Center jet: 35 feet high
    • Spray pattern: 20 feet high, 33 feet wide
  • Electric power cord provided:
    • Single phase, 230 V: 100 feet in length, 6-gauge
    • Three phase, 460 V: 200 feet in length, 10-gauge
    Electric power cord can be ordered in greater lengths
  • Ideal for ponds over 2 acres
  • 7-foot minimum pond depth required

AerationJet Fountain 20 hp

  • 20 hp, 460 V, 60 Hz, 32 amps, three phase, water-cooled and lubricated motor
  • Spray pattern measures:
    • Center jet: 40 feet high
    • Spray pattern: 20 feet high, 35 feet wide
  • Electric power cord provided: 200 feet in length, 10-gauge Electric power cord can be ordered in greater lengths
  • Ideal for ponds over 2 acres
  • 7-foot minimum pond depth required

AerationJet Fountain 30 hp

  • 30 hp, 460 V, 60 Hz, 47.2 amps, three phase, water-cooled and lubricated motor
  • Spray pattern measures:
    • Center jet: 45 feet high
    • Spray pattern: 25 feet high, 40 feet wide
  • Electric power cord provided: 200 feet in length, 8-gauge
    Electric power cord can be ordered in greater lengths
  • Ideal for ponds over 2 acres
  • 8-foot minimum pond depth required

Safety & Compliance: Vertex fountains must be removed from water prior to freezing conditions. Please see owner’s manual for complete installation instructions, warranty details, and maintenance guidelines.

Features & Benefits (PDF)

Specs & Assembly (PDF)

Owner’s Manual (PDF)
