Vertex TriGeyser Fountain

Vertex TriGeyser Fountain

SKU: 70013.100

$30,259.00

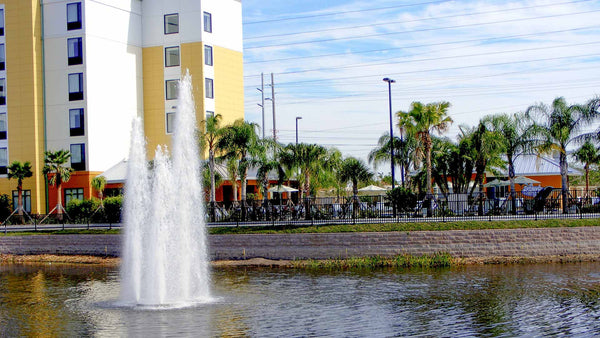

Fountain in a pond with apartment buildings and palm trees in the background
Fountain in a pond with apartment buildings and palm trees in the background
Fountains in a pond with a building and palm trees in the background
Description Specs Features & Assembly Price Matching

Introducing the TriGeyser Commercial Fountain from Vertex!

The TriGeyser floating fountain features three highly aerated, conical water displays that combine to form a striking pyramid effect. Each pod’s height can be individually adjusted through valve controls, allowing for easy, on-site customization of the overall display.

Built for durability and performance, the TriGeyser floating lake fountain is constructed with fully waterproof components and premium, corrosion-resistant materials. A UL-listed control panel and heavy-duty submersible turbine pump ensure reliable operation and years of dependable, high-performance use.

Warranty: All Vertex fountains feature a 4-year warranty on pumps/motors, flotation components, and cables along with a 2-year warranty on submersible light fixtures (excluding bulbs), and a 1-year warranty on controls.

Returns: Unused Vertex fountains are eligible for returns within 30 days, minus a 25% restocking fee. Please contact us for details.

Proudly Made in the USA

The following configurations are “standard” but we also offer custom motor and power cord configurations of Vertex Fountains including single phase (230 V) or three phase motors (208 V, 230 V, 460 V) and virtually any length power cord! Just give us a call at 1-616-355-2451!

TriGeyser Fountain 10 hp

  • 10 hp, 230 or 460 V, water-cooled and lubricated motor
  • 60 Hz, single phase or three phase
  • Amps:
    • Single phase, 230 V: 51
    • Three phase, 460 V: 15.8
  • Spray pattern measures:
    • A (highest): 15 feet high, 8 feet wide
    • B (middle): 10 feet high, 8 feet wide
    • C (shortest): 6 feet high, 8 feet wide
  • Electric power cord provided:
    • Single phase, 230 V: 100 feet in length, 8 gauge
    • Three phase, 460 V: 100 feet in length, 12 gauge
    Electric power cord can be ordered in greater lengths

TriGeyser Fountain 15 hp

  • 15 hp, 230 or 460 V, water-cooled and lubricated motor
  • 60 Hz, single phase or three phase
  • Amps:
    • Single phase, 230 V: 47
    • Three phase, 460 V: 23.7
  • Spray pattern measures:
    • A (highest): 18 feet high, 9 feet wide
    • B (middle): 12 feet high, 9 feet wide
    • C (shortest): 8 feet high, 9 feet wide
  • Electric power cord provided:
    • Single phase, 230 V: 100 feet in length, 6 gauge
    • Three phase, 460 V: 100 feet in length, 10 gauge
    Electric power cord can be ordered in greater lengths
  • Ideal for ponds over 2 acres
  • 7-foot minimum pond depth required

TriGeyser Fountain 20 hp

  • 20 hp, 460 V, 60 Hz, three phase, water-cooled and lubricated motor
  • Amps:
    • Three phase, 460 V: 32
  • Spray pattern measures:
    • A (highest): 22 feet high, 10 feet wide
    • B (middle): 15 feet high, 10 feet wide
    • C (shortest): 10 feet high, 10 feet wide
  • Electric power cord provided:
    • 200 feet in length, 10 gauge
    Electric power cord can be ordered in greater lengths
  • Ideal for ponds over 2 acres
  • 7-foot minimum pond depth required

TriGeyser Fountain 30 hp

  • 30 hp, 460 V, 60 Hz, three phase, water-cooled and lubricated motor
  • Amps:
    • Three phase, 460 V: 47.2
  • Spray pattern measures:
    • A (highest): 25 feet high, 12 feet wide
    • B (middle): 18 feet high, 12 feet wide
    • C (shortest): 12 feet high, 12 feet wide
  • Electric power cord provided:
    • 200 feet in length, 10 gauge
    Electric power cord can be ordered in greater lengths
  • Ideal for ponds over 2 acres
  • 7-foot minimum pond depth required

Safety & Compliance: Vertex fountains must be removed from water prior to freezing conditions. Please see owner’s manual for complete installation instructions, warranty details, and maintenance guidelines.

Features & Benefits (PDF)

Specs & Assembly (PDF)

Owner’s Manual (PDF)

We match any competitor’s price on Vertex Fountains!

Our price match guarantee!

We match any competitor’s price on Vertex Fountains!

How it works:

  • Find a lower Vertex Fountain price
  • Show us the competitor’s offer
  • We’ll match that price!

Call us for details: 1-616-355-2451!
