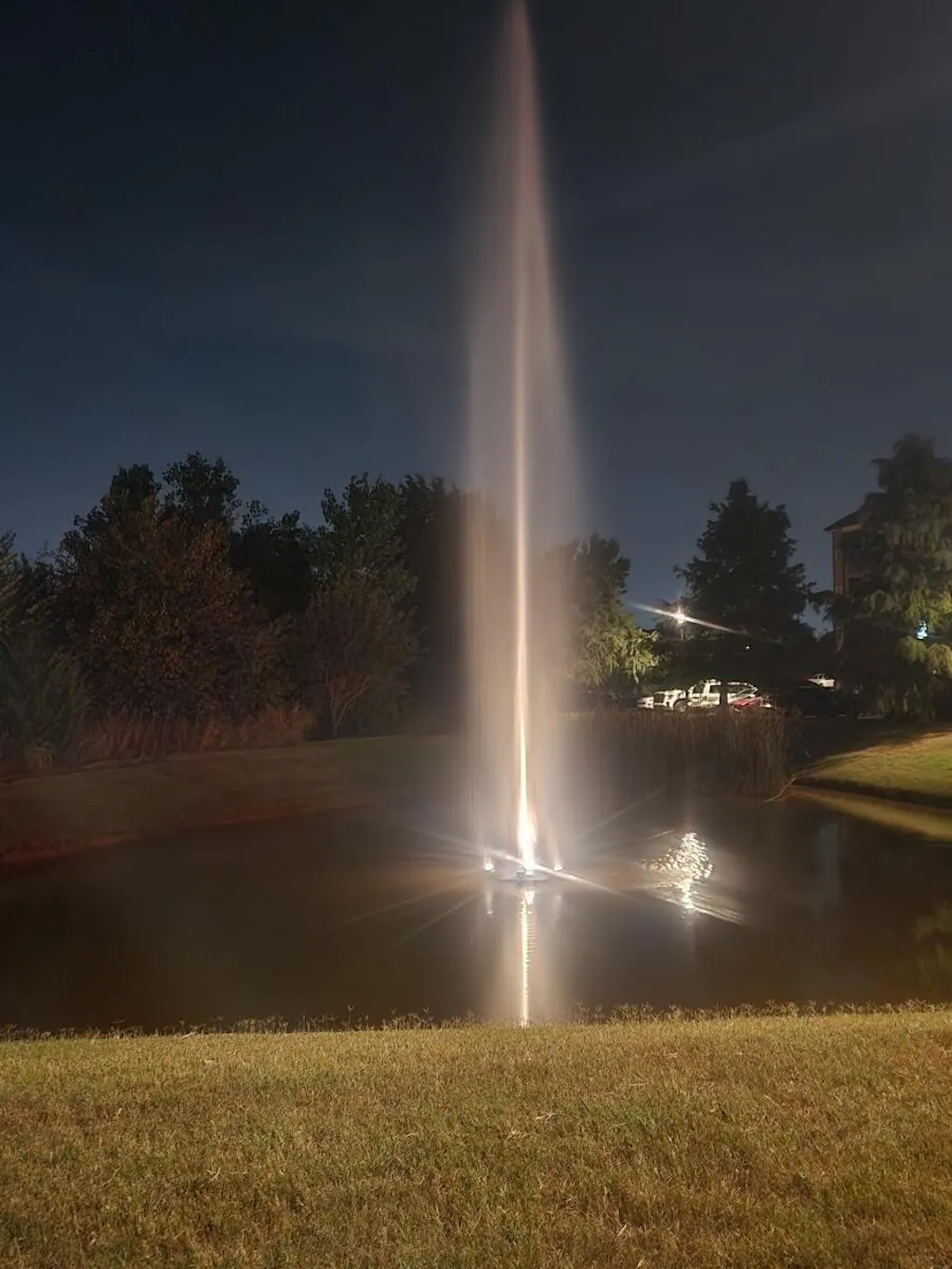

Gusher Fountain For Medium, Residential Ponds

Gusher Fountain For Medium, Residential Ponds

SKU: 13518

$2,739.00

Wire Chart
Select the correct voltage/power before purchasing!
?
For proper operation of a 115-volt motor, the distance from the main breaker to the fountain or aerator must not exceed 100 feet. If it does, please select a 230-volt motor.

Gusher Fountain ¾ hp

  • ¾-hp, 115 or 230 V, oil-free motor
  • 60 Hz, single-phase, 3,450 rpm (0.55 kW)
  • Current draw:
    • 115 V: 10.7 amps
    • 230 V: 6.8 amps
  • Also available in 3-phase and/or 50 Hz versions
  • 65 gallons-per-minute flow rate
  • 5-year motor warranty
  • Easy installation
  • Electric power cord provided:
    • 115 V: 70 feet in length, 10-gauge, submersible, with plug
    • 230 V: 70 feet in length, 12-gauge, submersible
    Electric power cord can be ordered in greater lengths
  • Approved for salt water
  • Light kits can be added at purchase or later
  • Two 20-pound weights or concrete blocks required for anchoring (not included)
  • Two nylon ropes required for anchoring (not included)
  • Designed for 24-hour-per-day operation
  • No maintenance required
  • 36-inch minimum pond depth required
  • Spray pattern measures: 18' high

Gusher Fountain 1 hp

  • 1-hp, 115 or 230 V, oil-free motor
  • 60 Hz, single-phase, 3,450 rpm (0.75 kW)
  • Current draw:
    • 115 V: 11.5 amps
    • 230 V: 8.2 amps
  • Also available in 3-phase and/or 50 Hz versions
  • 70 gallons-per-minute flow rate
  • 5-year motor warranty
  • Easy installation
  • Electric power cord provided:
    • 115 V: 100 feet in length, 10-gauge, submersible, with plug
    • 230 V: 100 feet in length, 12-gauge, submersible
    Electric power cord can be ordered in greater lengths
  • Approved for salt water
  • Light kits can be added at purchase or later
  • Two 35-pound weights or concrete blocks required for anchoring (not included)
  • Two nylon ropes required for anchoring (not included)
  • Designed for 24-hour-per-day operation
  • No maintenance required
  • 44-inch minimum pond depth required
  • Spray pattern measures: 23' high

Gusher Fountain 1½ hp

  • 1½-hp, 230 V, oil-free motor
  • 60 Hz, single-phase, 3,450 rpm (1.1 kW)
  • Current draw:
    • 230 V: 10.6 amps
  • Also available in 3-phase and/or 50 Hz versions
  • 90 gallons-per-minute flow rate
  • 5-year motor warranty
  • Easy installation
  • Electric power cord provided:
    • 230 V: 100 feet in length, 12-gauge, submersible
    Electric power cord can be ordered in greater lengths
  • Approved for salt water
  • Light kits can be added at purchase or later
  • Two 45-pound weights or concrete blocks required for anchoring (not included)
  • Two nylon ropes required for anchoring (not included)
  • Designed for 24-hour-per-day operation
  • No maintenance required
  • 50-inch minimum pond depth required
  • Spray pattern measures: 30' high

Safety & Compliance: A GFCI (Ground Fault Circuit Interrupter) is required. Always disconnect power when swimmers are present. Each Gusher Fountain is ARL-tested and fully compliant with UL standards and the National Electric Code when installed as a complete package.

Pond Fountain Motor Specs (PDF)

Gusher Fountain ¾ hp 115 V

UPC#

MPN# 13518

Gusher Fountain ¾ hp 230 V

UPC#

MPN# 13519

Gusher Fountain 1 hp 115 V

UPC# 810094924805

MPN# 13514.115

Gusher Fountain 1 hp 230 V

UPC# 810094920647

MPN# 13514.1

Gusher Fountain 1½ hp 230 V

UPC# 810094920654

MPN# 13517
