Vertex TriTier Fountain

Vertex TriTier Fountain

SKU: 70044.100

$15,819.00

Vertex TriTier Fountain
Vertex TriTier Fountain
Vertex TriTier Fountain
Description Specs Features & Assembly Price Matching

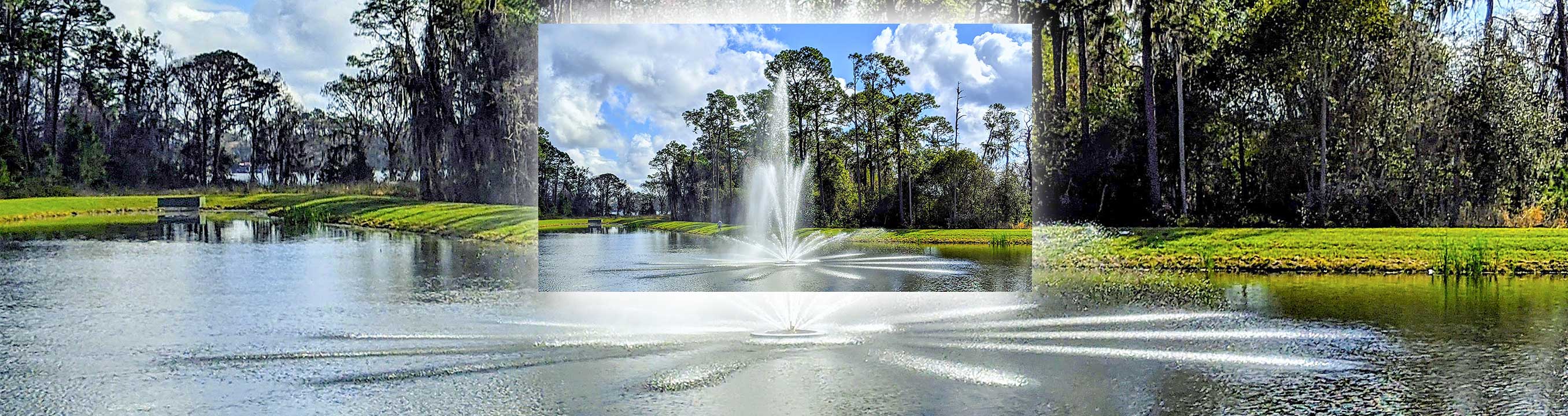

Introducing the TriTier Commercial Fountain from Vertex!

The TriTier Floating Fountain delivers one of the most elegant and visually striking water displays available. Its dramatic three-tier spray pattern features graceful, floral-like arches created by a precision-machined solid brass nozzle. Available in display heights ranging from 26 to 40 feet, the TriTier creates a stunning focal point for lakes and large water features.

TriTier lake fountains are powered by a heavy-duty submersible turbine pump and a UL listed control panel. All components are fully waterproof and made of the finest corrosion resistant materials providing customers years of dependability and high performance.

Warranty: All Vertex fountains feature a 4-year warranty on pumps/motors, flotation components, and cables along with a 2-year warranty on submersible light fixtures (excluding bulbs), and a 1-year warranty on controls.

Returns: Unused Vertex fountains are eligible for returns within 30 days, minus a 25% restocking fee. Please contact us for details.

Proudly Made in the USA

The following configurations are “standard” but we also offer custom motor and power cord configurations of Vertex Fountains including single phase (230 V) or three phase motors (208 V, 230 V, 460 V) and virtually any length power cord! Just give us a call at 1-616-355-2451!

TriTier Fountain 5 hp

  • 5 hp, 230 or 460 V, 60 Hz, water-cooled and lubricated motor
  • Single phase (230 V) or three phase (460 V)
  • Amps:
    • Single phase, 230 V: 17
    • Three phase, 460 V: 8.6
  • Spray pattern measures:
    • Center jet: 26 feet high
    • Second tier: 12 feet high
    • Third tier: 6 feet high, 40 feet wide
  • Electric power cord provided:
    • Single phase, 230 V: 100 feet in length, 10-gauge
    • Three phase, 460 V: 100 feet in length, 12-gauge
    Electric power cord can be ordered in greater lengths
  • Ideal for ponds over 2 acres
  • 5-foot minimum pond depth required

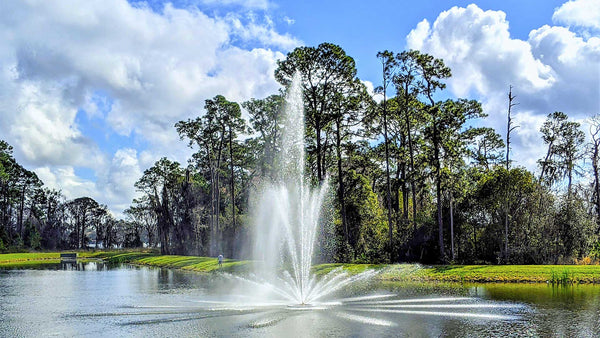

TriTier Fountain 7.5 hp

  • 7.5 hp, 230 V, 60 Hz, single phase, water-cooled and lubricated motor
  • Amps:
    • Single phase, 230 V: 47
  • Spray pattern measures:
    • Center jet: 30 feet high
    • Second tier: 15 feet high
    • Third tier: 7 feet high, 45 feet wide
  • Electric power cord provided: 100 feet in length, 10-gauge
    Electric power cord can be ordered in greater lengths
  • Ideal for ponds over 2 acres
  • 5-foot minimum pond depth required

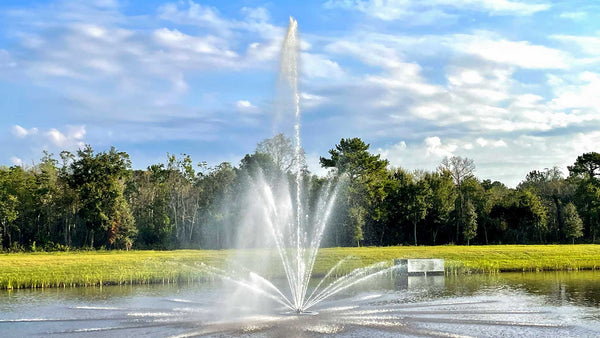

TriTier Fountain 10 hp

  • 10 hp, 230 or 460 V, 60 Hz, water-cooled and lubricated motor
  • Single phase (230 V) or three phase (460 V)
  • Amps:
    • Single phase, 230 V: 51
    • Three phase, 460 V: 15.8
  • Spray pattern measures:
    • Center jet: 35 feet high
    • Second tier: 17 feet high
    • Third tier: 8 feet high, 50 feet wide
  • Electric power cord provided:
    • Single phase, 230 V: 100 feet in length, 8-gauge
    • Three phase, 460 V: 100 feet in length, 12-gauge
    Electric power cord can be ordered in greater lengths
  • Ideal for ponds over 2 acres
  • 6-foot minimum pond depth required

TriTier Fountain 15 hp

  • 15 hp, 230 V, 60 Hz, single phase, water-cooled and lubricated motor
  • Amps:
    • Single phase, 230 V: 72
  • Spray pattern measures:
    • Center jet: 40 feet high
    • Second tier: 20 feet high
    • Third tier: 10 feet high, 55 feet wide
  • Electric power cord provided: 100 feet in length, 6-gauge
    Electric power cord can be ordered in greater lengths
  • Ideal for ponds over 2 acres
  • 7-foot minimum pond depth required

Safety & Compliance: Vertex fountains must be removed from water prior to freezing conditions. Please see owner’s manual for complete installation instructions, warranty details, and maintenance guidelines.

Features & Benefits (PDF)

Specs & Assembly (PDF)

Owner’s Manual (PDF)

We match any competitor’s price on Vertex Fountains!

Our price match guarantee!

We match any competitor’s price on Vertex Fountains!

How it works:

  • Find a lower Vertex Fountain price
  • Show us the competitor’s offer
  • We’ll match that price!

Call us for details: 1-616-355-2451!
