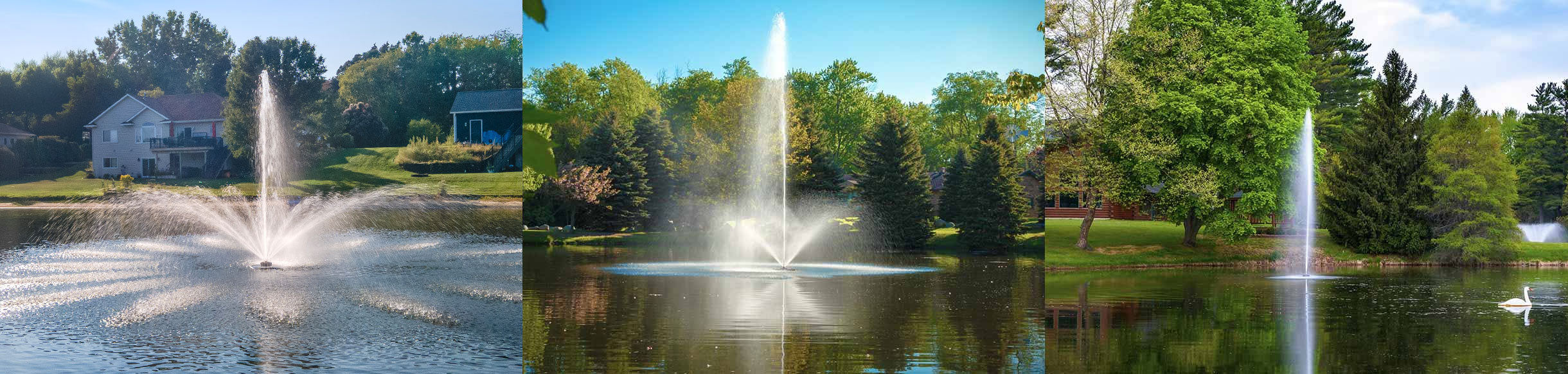

Triad Fountain For Large, Commercial Ponds

Triad Fountain For Large, Commercial Ponds

SKU: 13113

$6,419.00

Wire Chart
Select the correct voltage/power before purchasing!
?
For proper operation of a 115-volt motor, the distance from the main breaker to the fountain or aerator must not exceed 100 feet. If it does, please select a 230-volt motor.

Three Fountains in One!

The Triad Fountain 3 hp, 230 volts

  • 3-hp, 230-volt, oil-free motor
  • 170 gallons of water per minute flow rate
  • Electric cable provided is 100 feet in length, 12-gauge submersible, greater lengths available.
  • Light kits can be added at purchase or at a later date.
  • Approved for saltwater
  • Two 55-pound weights or concrete blocks required for anchoring (not included).
  • Two nylon ropes required for anchoring (not included).
  • Designed for 24-hour-per-day operation.
  • No maintenance required.
  • 64-inch minimum pond depth required.
  • Motor specs: 60 Hz, single phase, 14 amps, 3,010 watts, 230 volts
  • 5-year motor warranty
  • ARL tested and approved to be in compliance with the applicable requirements of UL and the National Electric Code as complete packages.

FOUNTAIN MOTOR SPECS (PDF)

The Triad Fountain 3 hp, 230 volts

UPC# 810094920500

MPN# 13113
