Great Lakes Fountain For Large, Commercial Ponds

Great Lakes Fountain For Large, Commercial Ponds

SKU: 13537

$5,939.00

Wire Chart
Select the correct voltage/power before purchasing!
?
For proper operation of a 115-volt motor, the distance from the main breaker to the fountain or aerator must not exceed 100 feet. If it does, please select a 230-volt motor.
A fountain in operation creating a tall column of water, situated in a pond with a backdrop of trees and a sunset.
A fountain in operation creating a tall column of water, situated in a pond with a backdrop of trees and a sunset.
Great Lakes Fountain For Large, Commercial Ponds
great-lakes-fountain
great-lakes-fountain
great-lakes-fountain
great-lakes-fountain
Tudor_1hp
Triad Cambridge
The Great Lakes Fountain …ifferent Nozzle Options!
NightGlo
Programmable RGB 2 or 4 Light Sets Scott Aerators
Description Specs Assembly UPC/MPN

Five Fountains in One!

The Great Lakes Fountain for larger ponds gives you the ultimate range of display choices for an aesthetically pleasing addition to your pond or lake. In addition, you’ll enjoy improved water clarity, increased oxygen levels, and an overall healthier aquatic environment. Five different brass nozzles are included with this fountain, each of which can be easily changed — tool-free!

The Great Lakes Fountain offers a variety of elegant stream options:

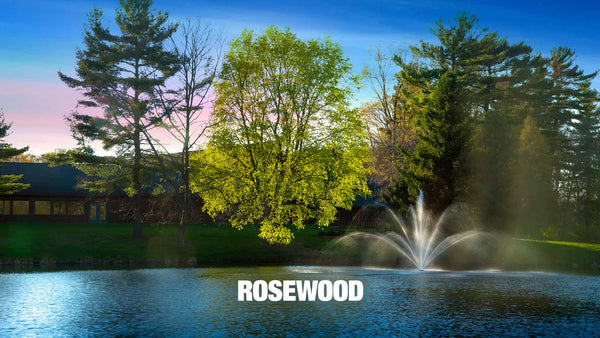

  • Rosewood offers a multi-tiered classic spray pattern.
  • Baystone provides a center peak with a traditional outer spray pattern.
  • Gusher offers a voluminous vertical column.
  • Tudor provides horizontal conical spray pattern.
  • Millbrook offers a vertical conical spray pattern.

Spray Pattern

2 HP

3 HP
Cambridge Spray Pattern IconRosewood

Up to 40-feet high x 50-feet wide.

Up to 45-feet high x 55-feet wide.
Baystone Spray Pattern IconBaystone

Up to 24-feet high x 40-feet wide

Up to 28-feet high x 45-feet wide
Gusher Spray Pattern IconGusher

Up to 45-feet high

Up to 50-feet high
Tudor Spray Pattern IconTudor

Up to 16-feet high x 50-feet wide

Up to 18-feet high x 55-feet wide
Millbrook Spray Pattern IconMillbrook

Up to 24-feet high x 40-feet wide

Up to 28-feet high x 45-feet wide

Any of the five options will promote a healthy aquatic environment while providing a dynamic, beautiful water display.

All Scott Aerator products are built to withstand harsh conditions — no need for complicated or costly winterizing procedures. Simply shut off the power and leave your fountain or aerator in place. When spring arrives and the ice thaws, restore power, and it’s ready to run. Every component is engineered to endure subzero temperatures without damage.

Made in the USA: All Scott Aerator Company fountains, aerators, Aquasweeps, and de-icers are proudly made in Holland, Michigan and carry an unconditional 5-year motor warranty. These products are manufactured using a stainless-steel, oil-free, submersible motor, making them among the most environmentally friendly pond products on the market. There is no oil to change, no maintenance required, and no control box needed. Like all Scott Aerator fountains and aerators, the Great Lakes Fountain is designed for use in both fresh and salt water.

Great Lakes Fountain Brochure

Pure Michigan
Proudly Made in the USA in Holland, Michigan

Other Great Lakes Sizes

Great Lakes Fountain For Small, Residential Ponds Great Lakes Fountain For Medium, Commercial Ponds

The Great Lakes Fountain, 2 hp

  • 2-hp, 230 V, oil-free motor
  • 60 Hz, single-phase, 3,450 rpm (1.5 kW)
  • Current draw:
    • 230 V: 10 amps
  • Also available in 3-phase and/or 50 Hz versions
  • 130 gallons-per-minute flow rate
  • 5-year motor warranty
  • Easy installation
  • Electric power cord provided:
    • 230 V: 100 feet in length, 10-gauge, submersible
    Electric power cord can be ordered in greater lengths
  • Approved for salt water
  • Light kits can be added at purchase or later
  • Two 45-pound weights or concrete blocks required for anchoring (not included)
  • Two nylon ropes required for anchoring (not included)
  • Designed for 24-hour-per-day operation
  • No maintenance required
  • 56-inch minimum pond depth required
  • Five different brass nozzles included: Rosewood, Baystone, Gusher, Tudor, and Millbrook.

The Great Lakes Fountain, 3 hp

  • 3-hp, 230 V, oil-free motor
  • 60 Hz, single-phase, 3,450 rpm (2.2 kW)
  • Current draw:
    • 230 V: 13.3 amps
  • Also available in 3-phase and/or 50 Hz versions
  • 170 gallons-per-minute flow rate
  • 5-year motor warranty
  • Easy installation
  • Electric power cord provided:
    • 230 V: 100 feet in length, 10-gauge, submersible
    Electric power cord can be ordered in greater lengths
  • Approved for salt water
  • Light kits can be added at purchase or later
  • Two 55-pound weights or concrete blocks required for anchoring (not included)
  • Two nylon ropes required for anchoring (not included)
  • Designed for 24-hour-per-day operation
  • No maintenance required
  • 60-inch minimum pond depth required
  • Five different brass nozzles included: Rosewood, Baystone, Gusher, Tudor, and Millbrook.

Safety & Compliance: A GFCI (Ground Fault Circuit Interrupter) is required. Always disconnect power when swimmers are present. Each Great Lakes Fountain is ARL-tested and fully compliant with UL standards and the National Electric Code when installed as a complete package.

Pond Fountain Motor Specs (PDF)

Pond Fountain Specs & Assembly (PDF)

The Great Lakes Fountain, 2 hp, 230 volts

UPC# 810094929039

MPN# 13537

The Great Lakes Fountain, 3 hp, 230 volts

UPC# 810094929114

MPN# 13538
