Atriarch Fountain For Large, Commercial Ponds

Name: Atriarch Fountain For Large, Commercial Ponds
Brand: Scott Aerator
SKU: 13199
Price: 5499.0 USD
Availability: InStock

SKU: 13199

$5,499.00 Save $-5,499

Wire Chart

Motor: 2 hp 230 volts

Cord Length: 100 feet

Light Set (Ships Free!): Not Included

Select the correct voltage/power before purchasing!

For proper operation of a 115-volt motor, the distance from the main breaker to the fountain or aerator must not exceed 100 feet. If it does, please select a 230-volt motor.

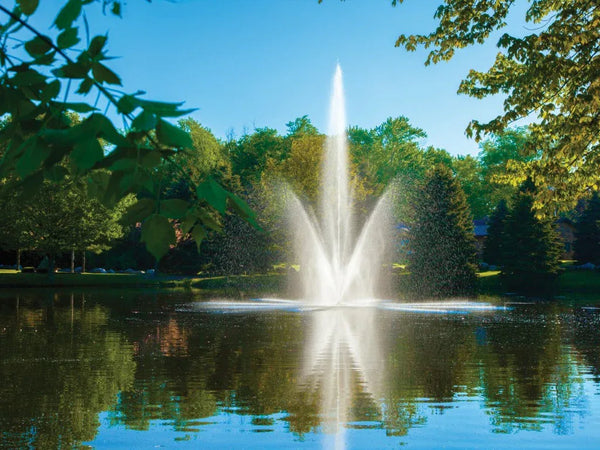

Fountain in a park with trees and clear blue sky

Scott Aerator Atriarch Fountain for Commercial Ponds and Applications

Programmable RGB 2 or 4 Light Sets Scott Aerators

Description Specs Assembly UPC/MPN

The elegant look of the Atriarch reaches new heights with the 2- and 3-hp motor, enhancing your outdoor living space while adding value to your property.

Engineered for all types of applications from residential, commercial, and municipal, the Atriarch will provide many years of maintenance-free performance.

We also offer the Atriarch Fountain in 1-hp and 1½-hp models.

GFCI required, Please disconnect power when swimmers are present. ARL tested and approved to be in compliance with the applicable requirements of UL and the National Electric Code as complete packages.

Pond Fountain Comparison Brochure

Pond Fountain Comparison Brochure (PDF)

Proudly Made in the USA in Holland, Michigan

Other Atriarch Sizes

Atriarch Fountain For Residential Ponds

Atriarch Fountain 2 hp

2-hp, 230-volt, oil-free motor.
155 gallons-per-minute flow rate.
Center stream is 50 feet high.
8 angled jets spray at 30 feet high.
Electric power cord provided is 100 feet in length, 10-gauge submersible. Can be ordered in greater lengths.
Light sets available at purchase, can also be added later.
Approved for use in saltwater.
Two 50-pound weights or concrete blocks required for anchoring (not included).
Two nylon ropes required for anchoring (not included).
Designed for 24-hour-per-day operation.
No maintenance required.
56-inch minimum pond depth required.
Pond size should be ¼ acre or larger.
Motor specs: 60 Hz, single phase, 12 amps, 2,025 watts.
5-year motor warranty.

Atriarch Fountain 3 hp

3-hp, 230-volt, oil-free motor.
180 gallons-per-minute flow rate.
Center stream is 60 feet high.
Electric cable provided is 100 feet in length, 10-gauge submersible. Can be ordered in greater lengths.
Light sets available at purchase, can also be added later.
Approved for use in salt water.
Two 55-pound weights or concrete blocks required for anchoring (not included).
Two nylon ropes required for anchoring (not included).
Designed for 24-hour-per-day operation.
No maintenance required.
64-inch minimum pond depth required.
Pond size should be ¼ acre or larger.
Motor specs: 60 Hz, single phase, 14 amps, 3,000 watts.
5-year motor warranty.
ARL tested and approved to be in compliance with the applicable requirements of UL and the National Electric Code as complete packages.

FOUNTAIN MOTOR SPECS (PDF)
